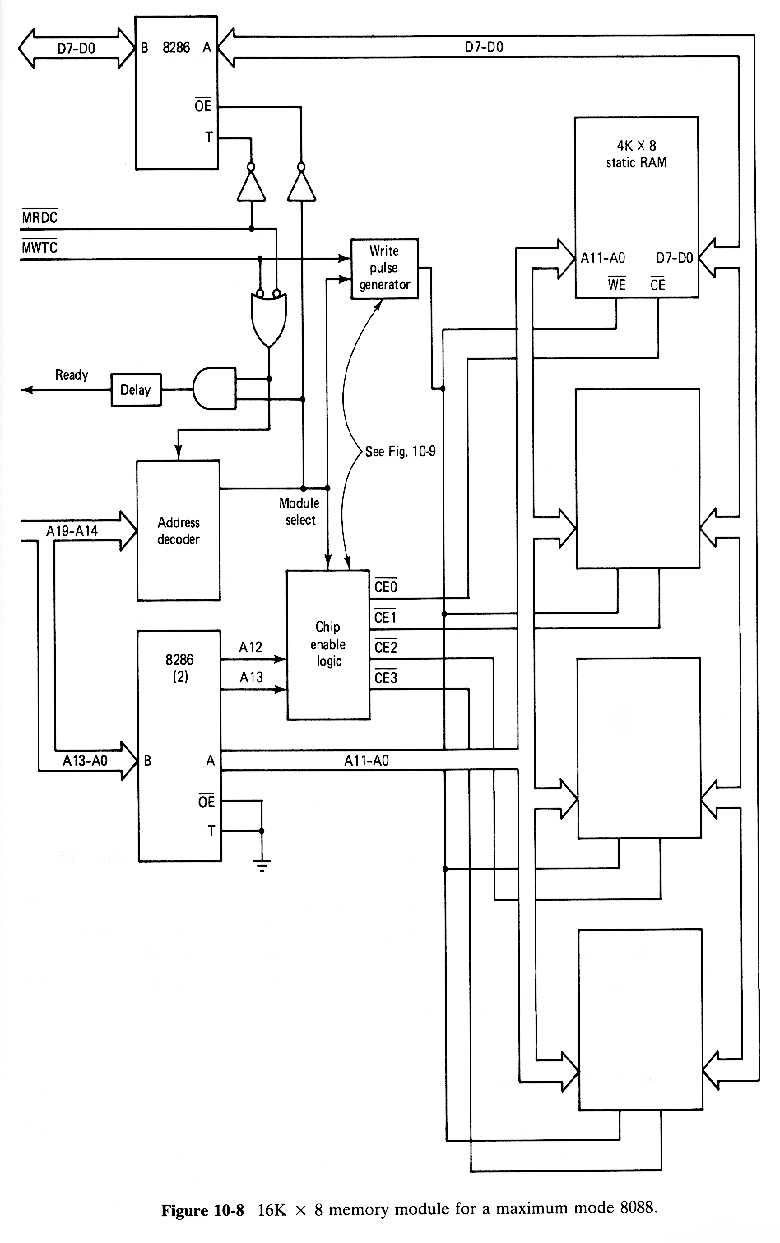

An example of the design of a 16K x 8 static RAM memory module for a maximum mode 8088 is shown in Fig.10-8.It is assumed that the \CE and \WE inputs and the D7-D0 pins of the 4K x 8 static RAM, have the following relationships:

            __      __
            CE      WE        Function            D7-D0

             1       x       Not selected      High-impedance state
             0       1       Read              Data put on lines
             0       0       Write             High impedance and data
                                               are taken from lines
