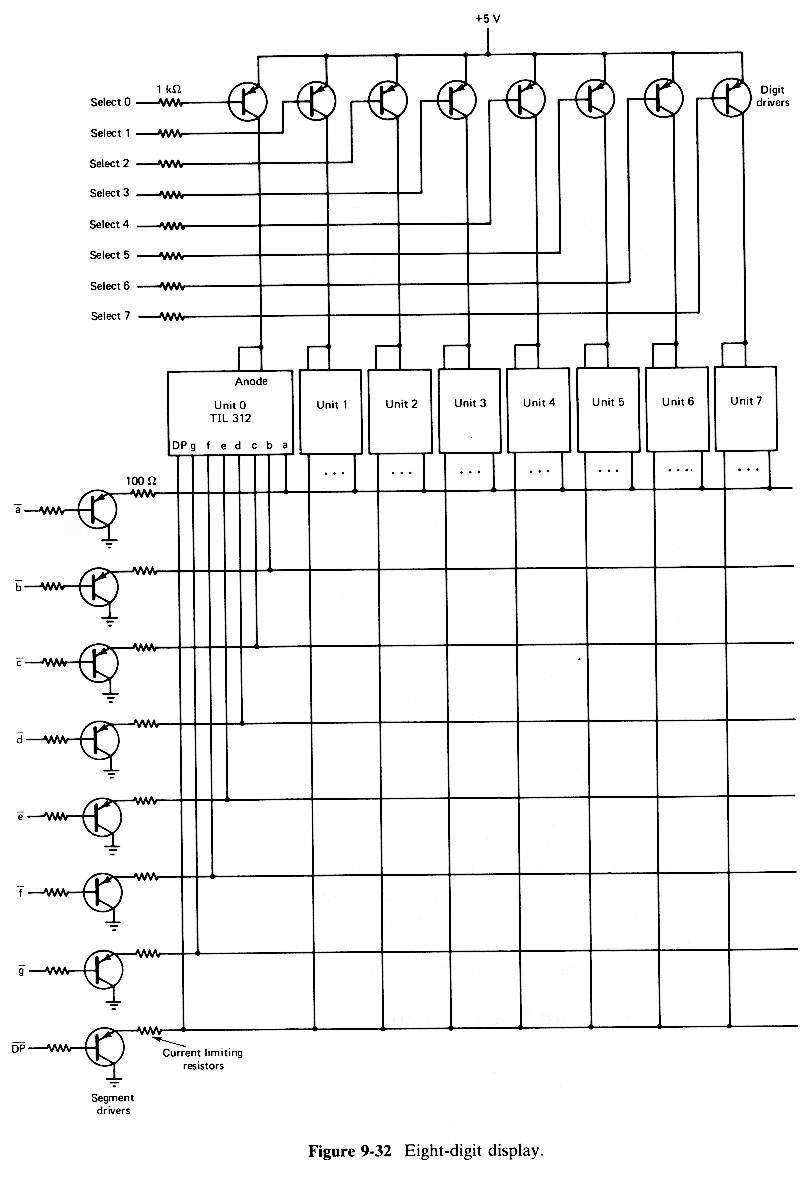

Figure 9-32 shows a multiple-digit display that is configured from eight seven-segment display units.In order to reduce the device count by eliminating external data latches from the display units, they can be connected to two 8-bit parallel output ports and operated in a multiplexed mode.
